PCB设计如何建立元件library?

发布时间 :2018-06-25 17:08 阅读 : 来源 :技术文章责任编辑 :深圳宏力捷PCB设计部
PCB设计建立自己的元件library

一个schematics component library (xxx.lib)底下会有很多component (schematics symbol)。
 library 包含多个component (schematics symbol)。
 library 包含多个component (schematics symbol)。

基本流程操作:
开启Component Library Editor, 选择一个已存在Library 去编辑,如新增component、编辑component、删除component , 然后更新此Library(存到RAM而已),离开时存到硬盘。

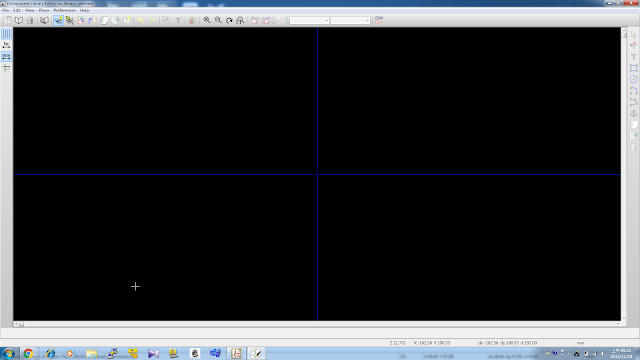

进入Component Library Editor画面
进入Component Library Editor画面

新增一个component:
新增一个component 存成新的library 或是存在一个原有的library 里
新增component, 也可以是载入既有的component来改而成为一个新component

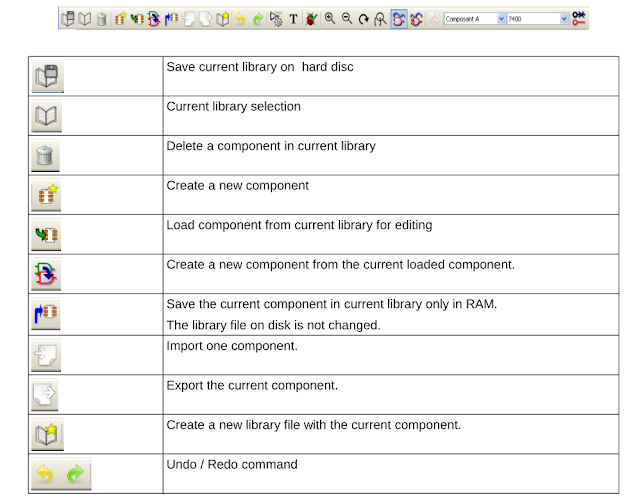

上方工具列说明
上方工具列说明

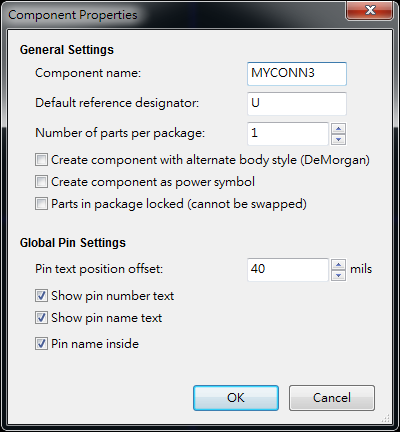

按下工具  "Create a new component", 出现底下画面, 确定后产生MYCONN3/U? 文字重迭在一在, 把它们分开(选择按"M", 即可移动), Component name 通常取IC零件(part) 名称, 如7401, 7402之类的。"Number of parts per package" 这个新component 是代表几个零件(part),假设成3,则会有U?A, U?B, U?C的命名。在电路图绘制,插入一个component, 若是多个part时,在library browser 右上方会有一个part 下拉选单要选择。一般情况, 一个component就是一个零件,只有唯一的part。

按下工具  "Create a new component", 出现底下画面, 按下OK后, 产生MYCONN3/U? 文字重迭在一在, 把它们分开(用mouse选择并按下"M", 即可移动)
按下工具  "Create a new component", 出现底下画面, 按下OK后, 产生MYCONN3/U? 文字重迭在一在, 把它们分开(用mouse选择并按下"M", 即可移动)
create and insert a pin.

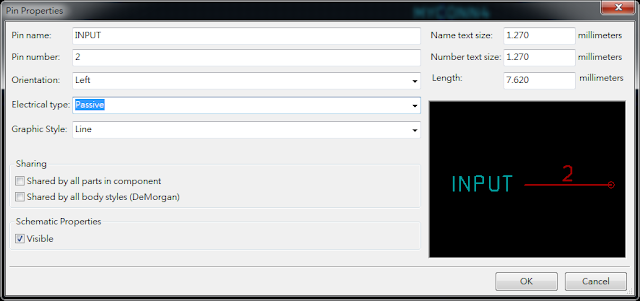

按下工具 "Add pins to the component", 如底下画面,  Electrical type 都选 Passive
按下工具 "Add pins to the component", 如底下画面,  Electrical type 都选 Passive

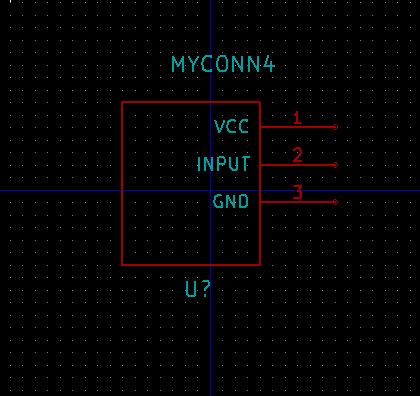

排版一下,完成如下画面
排版一下,完成如下画面

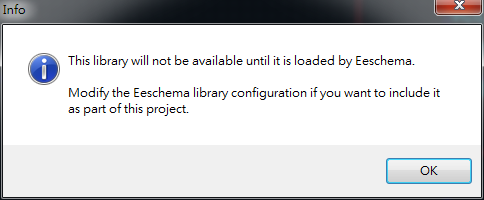

存档离开。它会提醒你,要增加library搜寻路径, 不然无法在library browser 找到你的library
存档离开。它会提醒你,要增加library搜寻路径, 不然无法在library browser 找到你的library

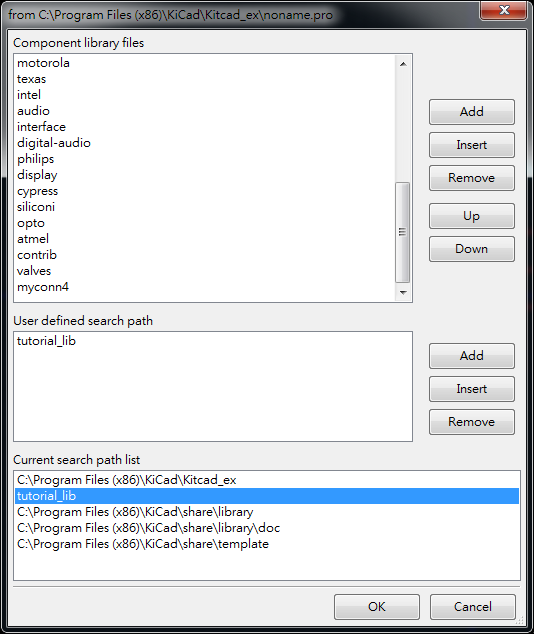

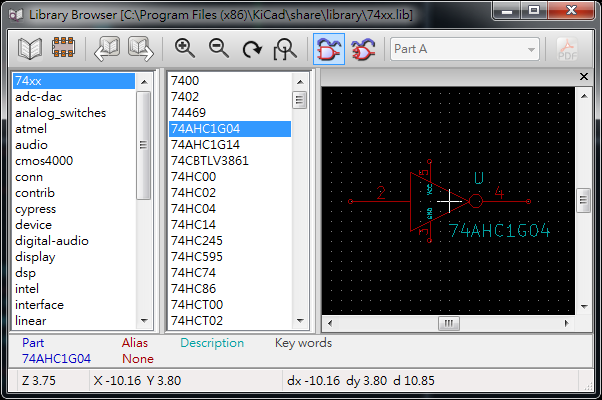

上下两个视窗都Add 你的library ,在library browser 就可以找到你的library
上下两个视窗都Add 你的library ,在library browser 就可以找到你的library
